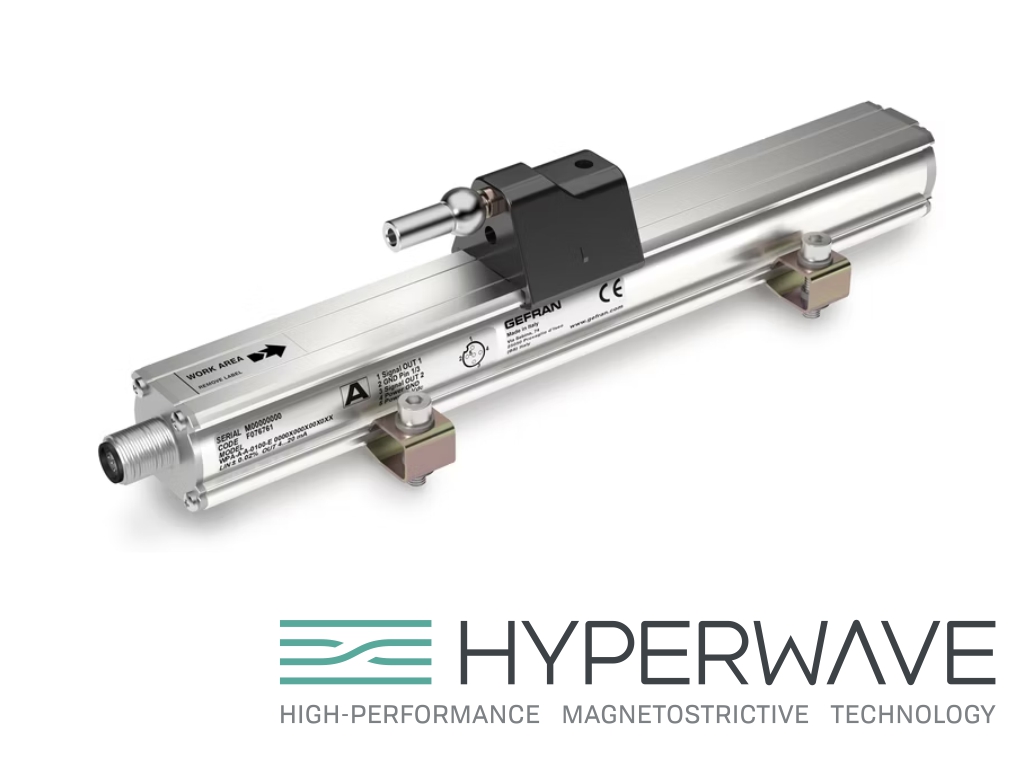

Gefran WPA-S contactless magnetostrictive linear position transducer(synchronous serial output)

  • Gefran WPA-S contactless magnetostrictive linear position transducer(synchronous serial output)

Features

Useful electrical stroke: 50 - 4000 mm
  • Contactless linear position transducer with HYPERWAVE magnetostrictive technology, with RS422-SSI digital output interface. The absence of electrical contact on the cursor eliminates all wear and guarantees almost unlimited life. High performance in terms of environmental IP protection and EMC immunity.High accuracy of the mesurement with reference to the non linearity, repeatability and hysteresis. High resistance to vibrations, mechanical shocks for use in a harsh industrial environment.

+ Add to Inquiry
  • Optimised mechanical structure
  • Strokes from 50 to 4000 mm
  • Fast installation by mean of steel brackets
  • Sliding or floating magnetic cursor
  • Synchronous Serial Interface direct to controllers
  • Output data resolution available from 0.5 to 40 μm
  • Data format: binary or Gray code; incremental/decremental
  • Power supply 10...32 Vdc
  • Resistance to vibration (DIN IEC68T2/6 15g)
  • IP67 protection
  • Work temperature: -30...+90°C
  • Electromagnetic compatibility EMC 2014/30/EU
  • Compliant to the directive RoHS 2011/65/EU
