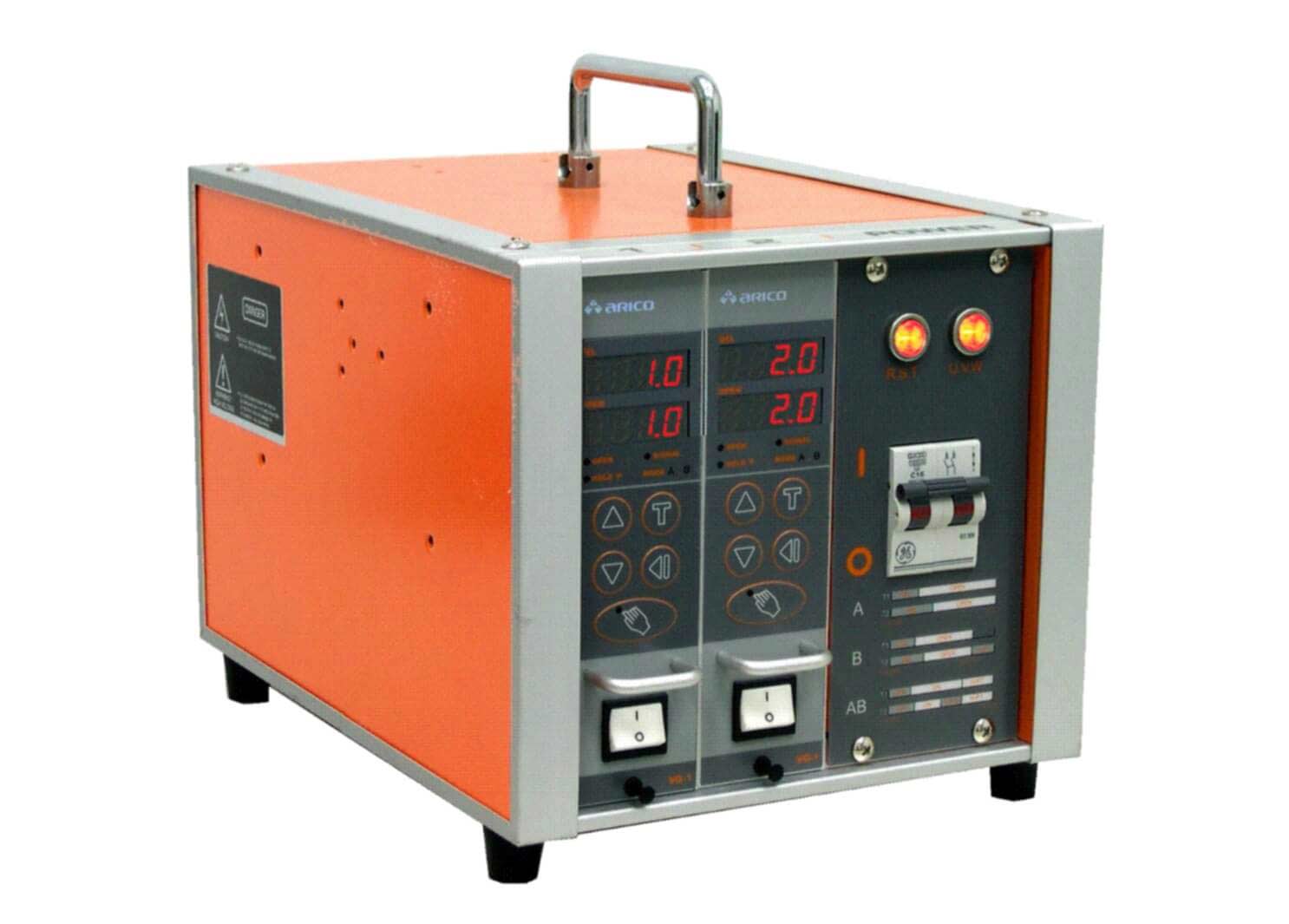

TC5V Valve Gate Controller - 2 Zones
Features
- The TC5V Valve Controller supports various input signals, including AC220/110, DC24, and switch-type. Similarly, the output mode can also be selected as AC220/110, DC24, and switch-type.
- The valve controller's time display function can be adjusted to the first decimal place and provides a time counting function that allows selecting either cumulative or countdown timing. It also offers the option of a pressure-maintaining mode to ensure valve stability.
- The electronic switch is a standard configuration of the valve controller and can support up to 600mA of current, which can extend the lifespan. If a larger output current is required, a mechanical switch can be selected as an optional accessory.
| TC5V | Model |
| Panel measurement | 50*176mm |
| Display | 7-Section tube 0.4*4*2 |
| Power switch | Manual dial type |
| Input power | AC230 (50/60Hz) |
| Trigger voltage | (Must jump JP), AC110 (50/60Hz), AC230 (50/60Hz), DC24, Switch (DC24) |
| Output power | (must jump JP), AC110(RELAY/electronic switch 4VA), AC230 (RELAY，2A/electronic switch 600mA),DC24 (RELAY/electronic switch 4W), RELAY－2A/electronic switch－600mA (either one) |
| Keys | 5 keys (select/confirm, manual output, plus, minus, time setting) |
| Function display lamps | A/B mode lamp, OPEN lamp, SIGNAL lamp, pressure retaining lamp, manual output lamp |
