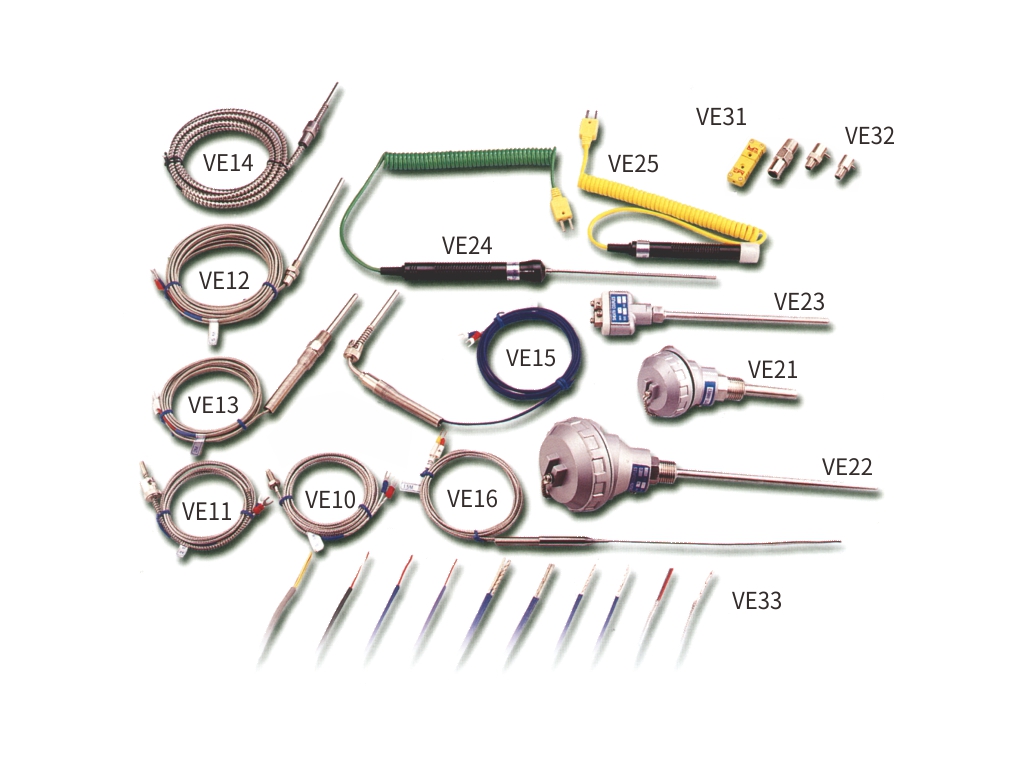

Thermocouples
Features
- Temperature sensing wire is a high-precision temperature sensor. It accurately measures temperature and converts it into corresponding electrical signals.
- These sensing wire products find wide applications in industrial control systems, hot runner/hot flow control, temperature monitoring, and environmental monitoring, among other areas.
- VE-1-2-3-4-5-6-7-8
- 1：Model number
- 2：Tube dia
- 3：Tube length
- 4：Fitting screw
- 5：Lead wire length
- 6:Element
- 7:Wire material
- 8:Isolation
10
11
12
N----without
A----1.6
B----3.2
C----5
D----6.35
E----8
F----9.5
G----12.7
H----15
I----22
J----12.5
K----4
L----2.3
other
000----0mm
050----50mm
100----100mm
150----150mm
other
N----without
A----1/4”-20UNC
B----5/16”-24UNF
C----PT1/8”
D---- PT1/4”
E---- PT3/8”
F---- PT1/2”
G---- PT3/4”
H---- PF1/8”
I---- PF1/4”
J---- PF3/8”
K---- PF1/2”
L---- PF3/4”
M----M6
P----M8
S----M10
Q----1/4”-stainless steel
R----3/8”
00----None
01----0.1m
05----0.5m
10----1m
15----1.5m
20----2m
1T----10m
A1----11m
A2----12m
A3----13m
2T----20m
B1----21m
N----None
K----K（CA）
J----J（IC）
P----Pt（100ohm）
R----R（Pt-13%）
S----S（Pt-10%）
T----T
N----None
stainless net coat
A----0.65/1
B----0.32/4
C----0.65/1（L）
fiberglass coat
D----0.65/1
E----0.65/4
F----0.65/7
G----0.32/4
H----0.32/7
PVC coat
I----0.65/1
J----0.32/4
tafolon coat
K----0.65/1
L----0.32/4
N----without
Y----isolated
